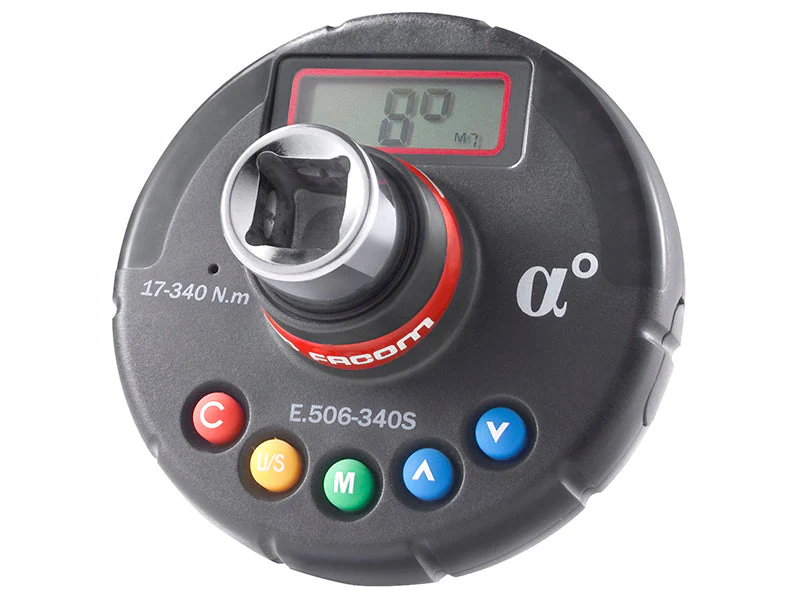

Facom E.506-340S Torque & Angle Adaptor
The Facom E.506-340S Torque & Angle Adaptor is designed for use in confined spaces to provide precise torque or angle increments. Featuring an electronic display that prevents reading errors, it indicates tightening via LEDs and a buzzer. This adaptor offers 9 pre-settable torque and/or angle values, a 50-result memory, a locking keypad, and a magnetised tool (ratchet) fastening. It eliminates friction issues related to torque tightening, ensuring faster tension defined by the screw pitch and tightening angle. Torque/angle tightening is executed in two steps: pre-torquing to position parts and eliminate interface faults, followed by specific angle tightening, which ensures proper assembly tension and prevents fastener loosening or breaking. Supplied in a plastic case with a calibration certificate and 2 x AAA-LR03 1.5V Batteries.
Features:
- Designed for confined spaces to provide torque or angle increments.
- Electronic display with LED and buzzer indicators to prevent reading errors.
- 9 pre-settable torque and/or angle values and a 50-result memory.
- Locking keypad and magnetised tool (ratchet) fastening.
- Angle tightening eliminates friction issues related to torque tightening.
Technical Data:
- Torque Accuracy: ± 3°.
- Angle Accuracy: ± 2°.
- Capacity: 17-340nm.
- Measuring Units: Nm, lbf. ft, lbf.in, kg.cm and deg.
- Measuring Mode: Peak or Follower.
References:
- Supplied in a plastic case with a calibration certificate.
- Includes 2 x AAA-LR03 1.5V Batteries.
- Manufacturer Part No: E.506-340S
