Kuzar K-10 Tower Lift

Kuzar K-10 Tower Lift

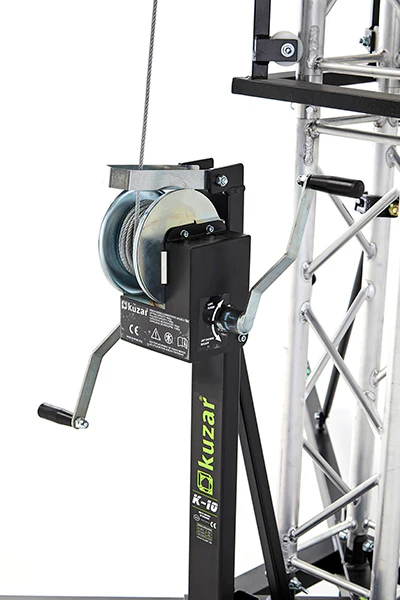

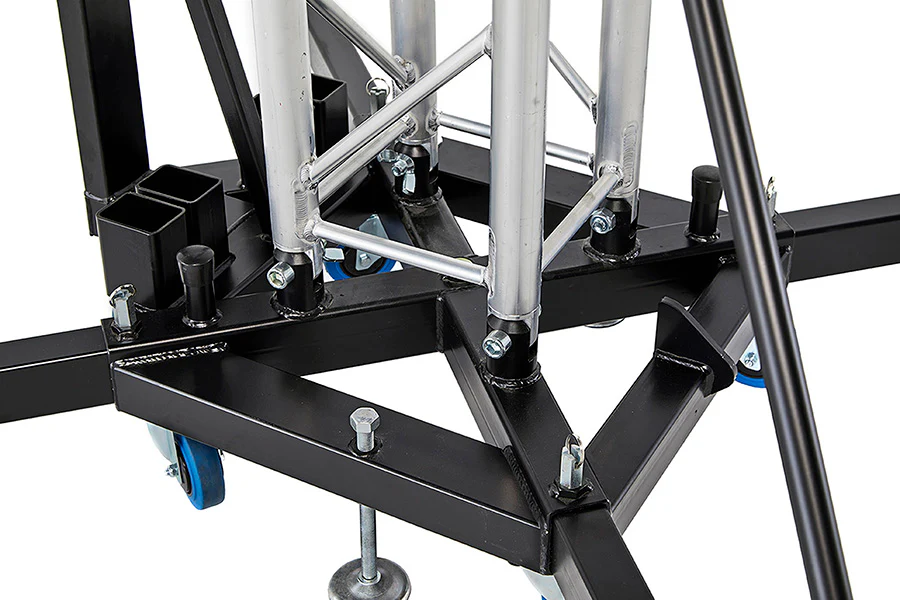

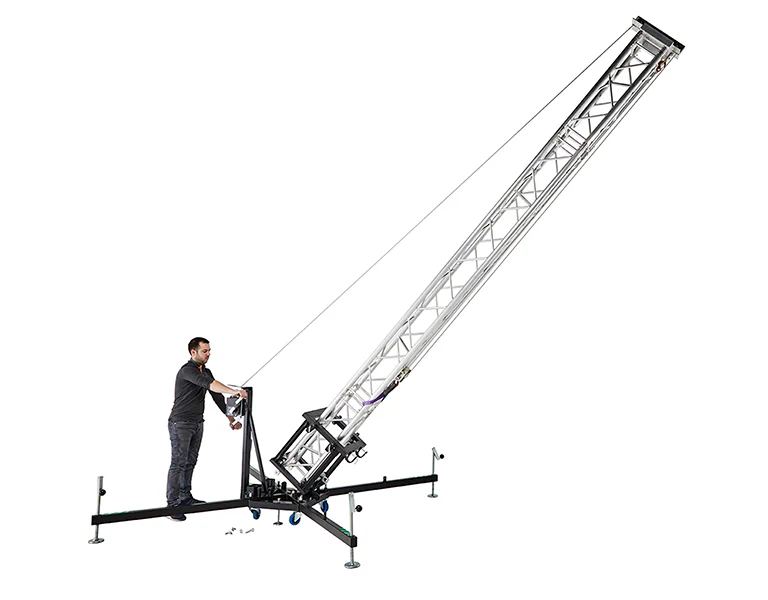

The Kuzar K-10 Tower Lift is a single-operator aluminium truss ground support tower engineered for indoor live events, concerts, and entertainment productions. The tower erects via an integrated steel-cable winch that pivots the structure over the base's ball joints into a fully vertical position, no crew required. A rigid steel base provides the stability needed throughout the lift, while non-slip adjustable feet lock the footprint in place once deployed.

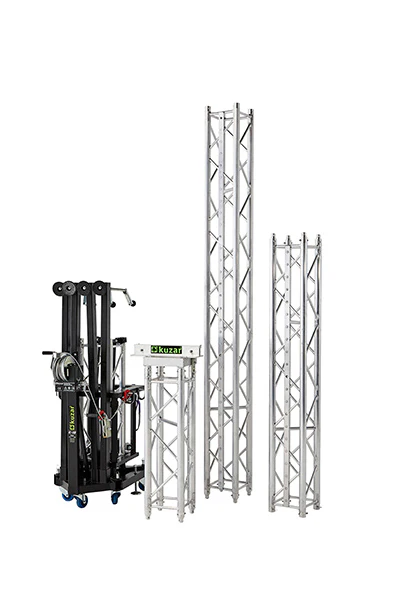

Built around Kuzar's 30 × 30cm truss section using 50mm tubes with 2.5mm wall thickness in 6082-T6 aluminium, the K-10 is supplied as a 7m assembly composed of four sections: 1m + 3m + 2m + 1m.

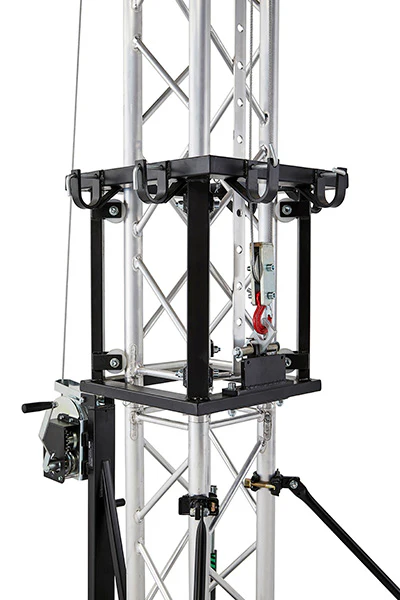

The working height can be extended up to 8m with optional additional sections. Load is raised and lowered by manual hoist, and the automatic braking system prevents any unintended sleeve descent. Compatible adaptors are available separately for integration with Global Truss F34PL and Global Truss F34 Standard truss sections.

For indoor use only. This product has no wind speed rating and is not approved for outdoor or open-air installations.
