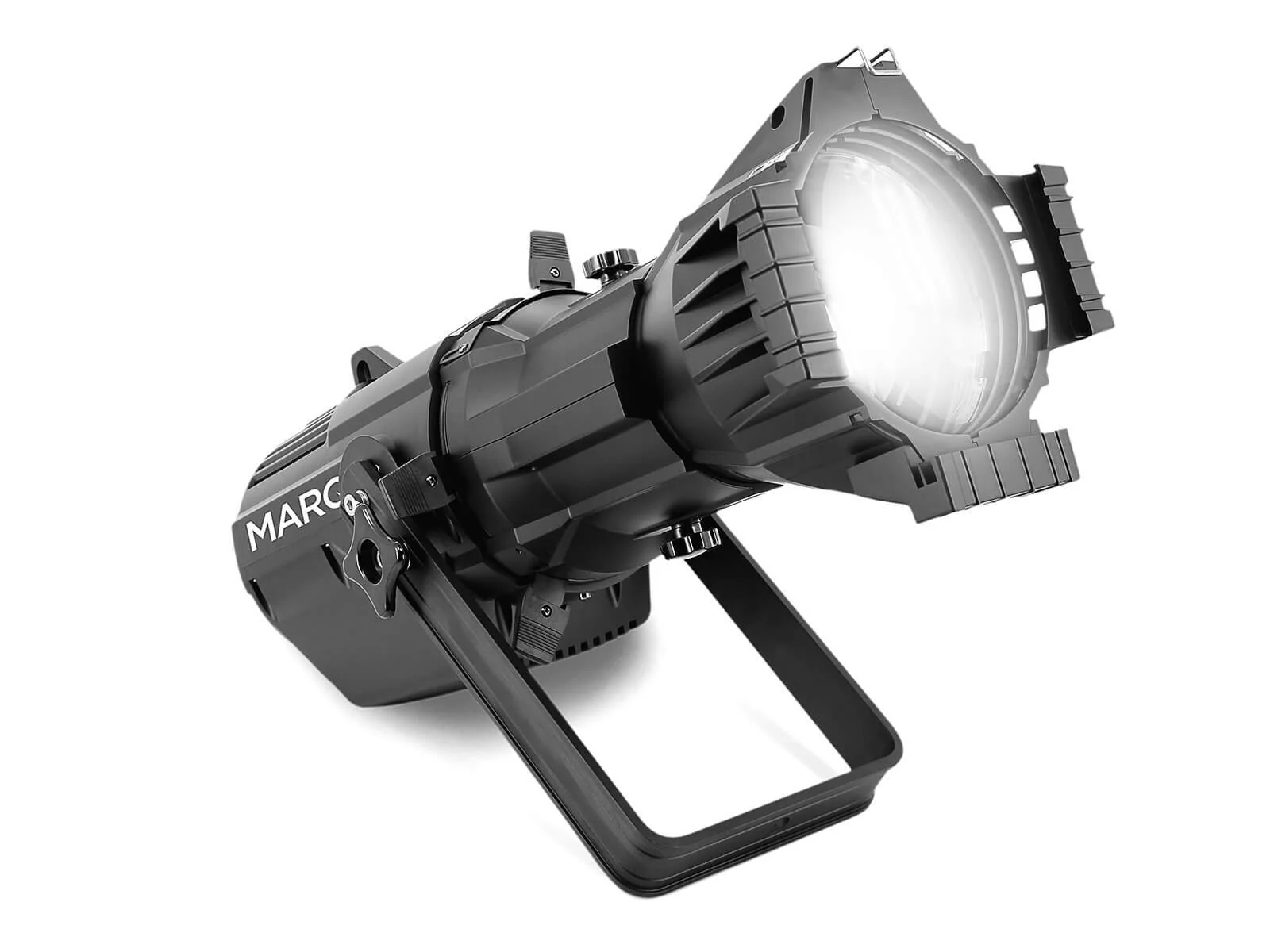

MARQ Framing Spotlight Onset120WW (Profile Headlight)

Onset120WW - 120W Warm White LED Ellipsoidal Profile Headlight

☼120W COB LED  🗲100V-240V; 50/60 HZ  ☄26°BEAM ANGLE  🖮3 PIN DMX in/out

Give your top attractions the attention they deserve with the Onset 120WW. It projects a vibrant, crisp gobo exactly where you need it, while its framing shutters enable you to precisely shape the beam and direct the light. It’s fully compatible with industry-standard lens tubes and Power Linking means faster setup with fewer cables.

What items are included?

• Onset 120WW Profile Headlight
• Gobo Holder

• Power Cable

• DMX Cable
• Gel Holder

• User Manual (Digital version attached here)

• Safety & Warranty Manual

User Manual (Multi Languages)

---

Features:

• 120-watt warm-white COB LED with ellipsoidal framing spot
• Framing shutters shape the light beam and crop unwanted output
• Standard gobo slot for use with glass or steel gobos and other accessories
• 4 selectable dimming curves
• Electronic strobe
• Control panel with LCD display and 4 soft keys
• 26-degree lens included
• Interchangeable with industry-standard lens tubes
• Power Linking enables faster setup with fewer cables

Specifications:

• DMX Channels: 3
• DMX Connectors: 3-pin DMX in/out
• Light Source: 120w WW (3200K) LED
• CRI: 85
• Strobe Rate: 0 - 20 Hz
• Beam Angle: 26°
• Illuminance: (26°) 3,150 lux @ 3M
• Power Linking: yes
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-switching)
• Power and Current: 140w
• Unit Weight: 6.4 kg
• Package Weight: 8.5 kg
• Unit Size: 700 × 260 × 250mm; 27.6 × 10.2 × 9.8in; 2.30 × 0.85 × 0.82ft
• Package Size: 785 × 320 × 330mm; 30.9 × 12.6 × 13.0in; 2.58 × 1.05 × 1.08ft
• Approvals: CE, FCC
